Chematest 42

Swan Analytical Instruments Chematest 42

The unique multiparameter device which includes turbidity measurements

Turbidity measurements are fully compliant to DIN ISO 7027-1 and USEPA 180.1. The individual factory calibration of every device guarantees a robust and accurate low-rage turbidity measurement from 0.01 FNU/NTU.

The instrument offers high precision and repeatability of results due to the fixed cuvette position – the cuvette is mechanically aligned to the very same position throughout all measurements which allows a smart cuvette offset management.

All photometric and nephelometric measurement results can be validated at any time with stable, fully traceable standards through the VeriKit accessory



Specifications

Parameters

Photometry:

  • Disinfectants: free/total/combined chlorine, chlorine dioxide, ozone, bromine, and iodine by the DPD method
  • Cyanuric acid
  • pH: photometric with phenol red

Nephelometry:
Turbidity measurement according to

  • ISO 7027-1
  • US EPA 180.1 alternate procedure (Registration as alternate test procedure to US EPA 180.1 in accordance with 40 CFR 136.4 pending.)

Sensor-based:
Digital, maintenance-free sensors with long service life available for

  • pH
  • Redox potential (ORP)
  • Specific conductivity



Highest Accuracy

  • Individual factory calibration of each photometer
  • Low-range turbidity measurement from 0.01 FNU/NTU with drinking water accuracy
  • Verification of photometric and nephelometric accuracy with stable, sealed standards



User-friendly Operation

  • User management and freely configurable sample IDs for comprehensive documentation of results
  • Intuitive on-screen instructions; choice between detailed guidance and expert mode for fast measurements
  • Favourites list for quick access to methods



Up-to-date Electronics

  • Chematest App for data export, instrument configuration, and firmware updates via Bluetooth interface
  • Powerful, USB-charged lithium-ion battery for approx. 5000 measurements
  • Memory for 2700 data sets

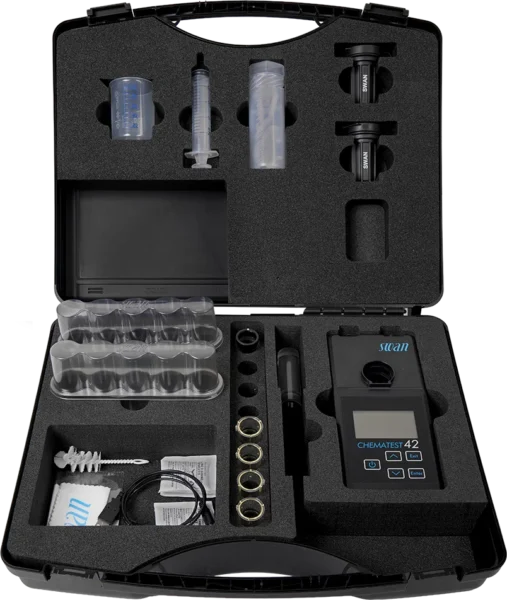

What’s Included

  • CHEMATEST 42 in carrying case,
  • 2x cuvette holder with integrated sealing lid,
  • 5x glass cuvette,
  • brush for cuvettes,
  • 6x cleaning wipes,
  • microfiber cleaning cloth,
  • sensor storage container,
  • 125 mL dropper bottle,
  • 10/20 mL syringe,
  • 8x syringe filter 0.2 µm in vial,
  • 2x blister pack for 5 reagent bottles each,
  • USB charging cable,
  • warranty card,
  • quick start guide.



Reagents

Swan Oxycon liquid reagents for reliable results and easy and time-saving handling.



Accessories

Verification kit photometry: set of three cuvettes, zero, low, and high absorbance

Verification standards turbidity: Choice of four cuvettes with 0, 1, 10, or 100 FNU/NTU stabilised formazine



Chematest 42Portable Turbidity Monitor online water analyser

















Public Pools

All relevant parameters in one device. Using the proven DPD-method ensures precision and reproducibility of online analytics. Saves maintenance time and costs for pool control and water treatment.

Potable Water

Verify your online measurements for additional security. Handy to use and suitable for even the most remote sampling points where no online monitor can be installed. Suitable from the source to the distribution network.

Pharmaceutical & Life Sciences

Quick and easy QA/QC spot-check analysis to monitor the effective sanitisation of your pharmaceutical water for compliance. Provides confidence in analysis accuracy by using traceable standards for verification of the measurement precision.

Food & Beverage

Operators of industrial plants require verification tools for their online water analytics to maintain the process water. Also, aquarium or fish farming operators require a good water quality monitoring to reduce maintenance costs.
