Monitor AMI CACE

Conductivity before and after cation exchange (CACE) with an EDI module for continuous, automatic resin regeneration.

No resin columns needed:
– no resin exchange
– no maintenance
– no chemicals
No resin rinse down time required:
Instrument available at all times
Calculation and display of alkalizing agent concentration and pH (VGB-directive 450L)

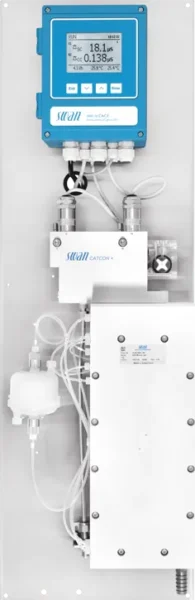

Conductivity before and after cation exchange (CACE) with an EDI module for continuous, automatic resin regeneration.

Transmitter AMI CACE in a rugged aluminium enclosure (IP 66).
Swansensor UP-Con1000-SL; two 2-electrode conductivity sensors with slot-lock design and integrated Pt1000 temperature probe, k = 0.04 cm-1.
Flow cell Catcon-Plus-SL CACE made of stainless steel 316L with digital sample flow meter. Quick sensor release with patented slot-lock design.
EDI-Module with exchangeable sample chamber module and automatic deaeration.
Factory tested, ready for installation and operation.

Conductivity measurement
Measuring range	0.055 … 1000 µS/cm
Accuracy	±1% of measured value or ±1 digit (whichever is greater)
Power supply
Voltage	100 … 240 VAC, 50/60Hz or 10-36 VDC
Power consumption	max. 30 VA
Sample conditions
Flow rate	3 to 4 L/h
Temperature	up to 50 °C
Inlet pressure	0.5 bar
Outlet pressure	pressure free
