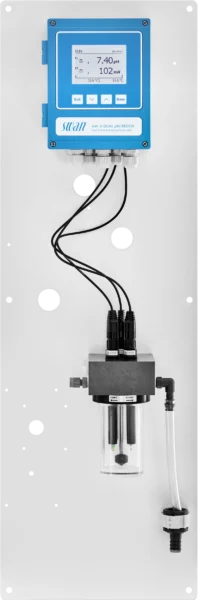

Complete dual channel analyser for the continuous measurement of pH and/or Redox (ORP) potential in potable-, process water and effluents.
This dual-channel monitor provides continuous, simultaneous measurement of pH and Redox (ORP) potential in potable-, process water and effluents. Designed for real-time water quality monitoring, it ensures precise, reliable data to support water treatment and effluent control processes. The system is factory-calibrated, ready for installation, and includes integrated temperature compensation for consistent accuracy across varying conditions. Ideal for maintaining water quality in critical applications with minimal maintenance requirements.
- Dual-channel monitoring for simultaneous pH and redox (ORP) measurements.
- Complete system mounted on a durable PVC panel for easy installation.
- Includes M-Flow flow cell with integrated Pt1000 temperature sensor and optional flowmeter.
- Factory-tested and ready for immediate installation and operation.
- Minimised maintenance with integrated sensor cleaning.
Dual pH/Redox Specifications
pH measurement
| Measuring range (with Swansensor) |
pH 1 to 13 |
| Resolution |
0.01 pH |
| Reference temperature |
25 °C |
| Temperature compensation |
Automatic according to Nernst |
ORP (redox) measurement
| Measuring range (with Swansensor) |
-1500 to +1500 mV |
| Resolution |
1 mV |
Temperature measurement
| Measuring range |
-30 to 130 °C |
| Resolution |
0.1 °C |
Power supply
| Voltage |
100 – 240 VAC (±10%), 50/60 Hz or 10 – 36 VDC |
Sample conditions
| Flow rate |
3 to 15 L/h |
| Temperature |
Up to 50 °C |
| Operating pressure |
Max. 1 bar |
Dimensions
Contact us to place an order.
